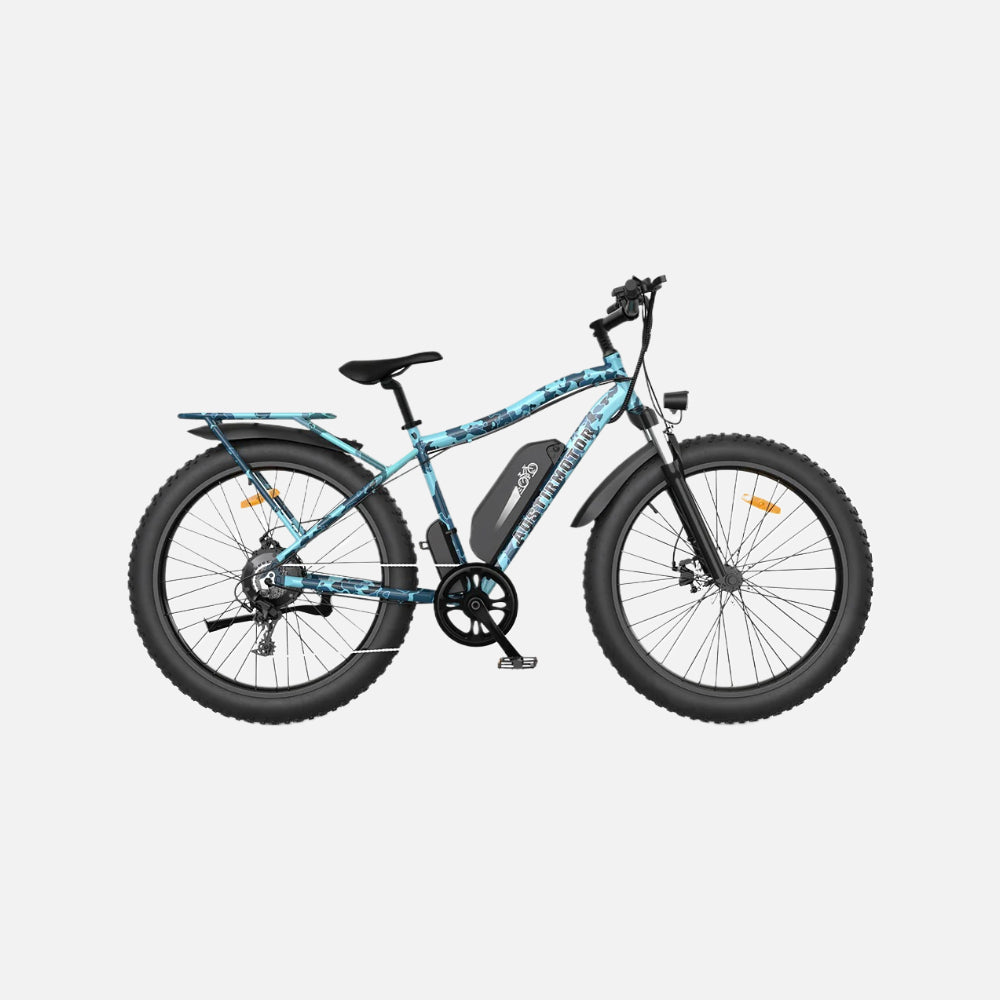

Aostirmotor S07-F commuter fat tire Electric Bike-750w motor-28mph-PAS (Pedal Assist System)-Aluminum Alloy Frame

Aostirmotor 26" S07-F Commuting Electric Bike

General Overview: The Aostirmotor 26" S07-F is designed to be a versatile and high-performance electric bike suitable for commuting, expeditions, and various activities. It combines comfort, practicality, and performance with an appealing design.

Power System:

• Battery: 48V 13Ah lithium battery.
• Motor: 750W motor, branded as TRUCK, which is noted for Bafang quality.
• Controller: 48V 22A.
• Charger: 110-220V, suitable for both US and European voltage standards.
• Display: SW-U-LCD for monitoring ride metrics.
• Turn-Handle: Rotary for control.
• Power Sensor: PAS (Pedal Assist System) for intelligent assistance.
• Charge Time: 4-6 hours (recommend regular recharging to extend battery life).
• Classes: Class 3 (Ebikes can go up to 28mph with pedal assistance)

Frame and Structure:

• Fork: ZOOM/MOZO for front suspension.
• Frame: 6061 Aluminum Alloy for durability and lightweight construction.
• Handlebar: 31.8*660mm.
• Stem: 28.631.8110mm.
• Rear Rack: Included for carrying additional cargo.

Brake System:

• Brakes: Mechanical disc brakes with 4 brake pads.
• Disc Brake Sizes: Front 180mm, Rear 160mm.
• Brake Lever: Universal.

Wheel System:

• Rim Form: Spoke wheel.
• Rim Material: Aluminum alloy.
• Tire Size: 26x4.0 inch fat tires for enhanced stability and comfort.

Speed System:

• Gear Shift Lever: 7-speed dial SHIMANO/Sunrace.
• Derailleur: 7-speed SHIMANO/Sunrace.
• Throttle: Included.

Shock Absorption System:

• Front Suspension: Fork shock absorption.
• Rear Suspension: None.
• Structural Shock Absorption: Lightweight aluminum alloy frame.

Additional Features:

• Saddle: City type, adjustable from 88-100cm.
• Light: Front light included.
• Pedal: Universal.
• Footrest: Universal.
• Fender: Included.
• Tube Clamp: D1=30mm, D2=38mm.

Performance:

• Riding Modes: Pedal Mode, Boost Mode, Power Mode.
• Range Distance: 25-35 km (in pure power mode).
• Max Speed: 45 km/h.

Dimensions and Weight:

• Product Size: 192*112 cm.
• Net Weight: 33 kg.
• Gross Weight: 38 kg.
• Package Size: 1582885 cm.

Color Options:

• Black\
• Camouflage
• White

Weight Capacity:

• Maximum load capacity: 300 lbs.
