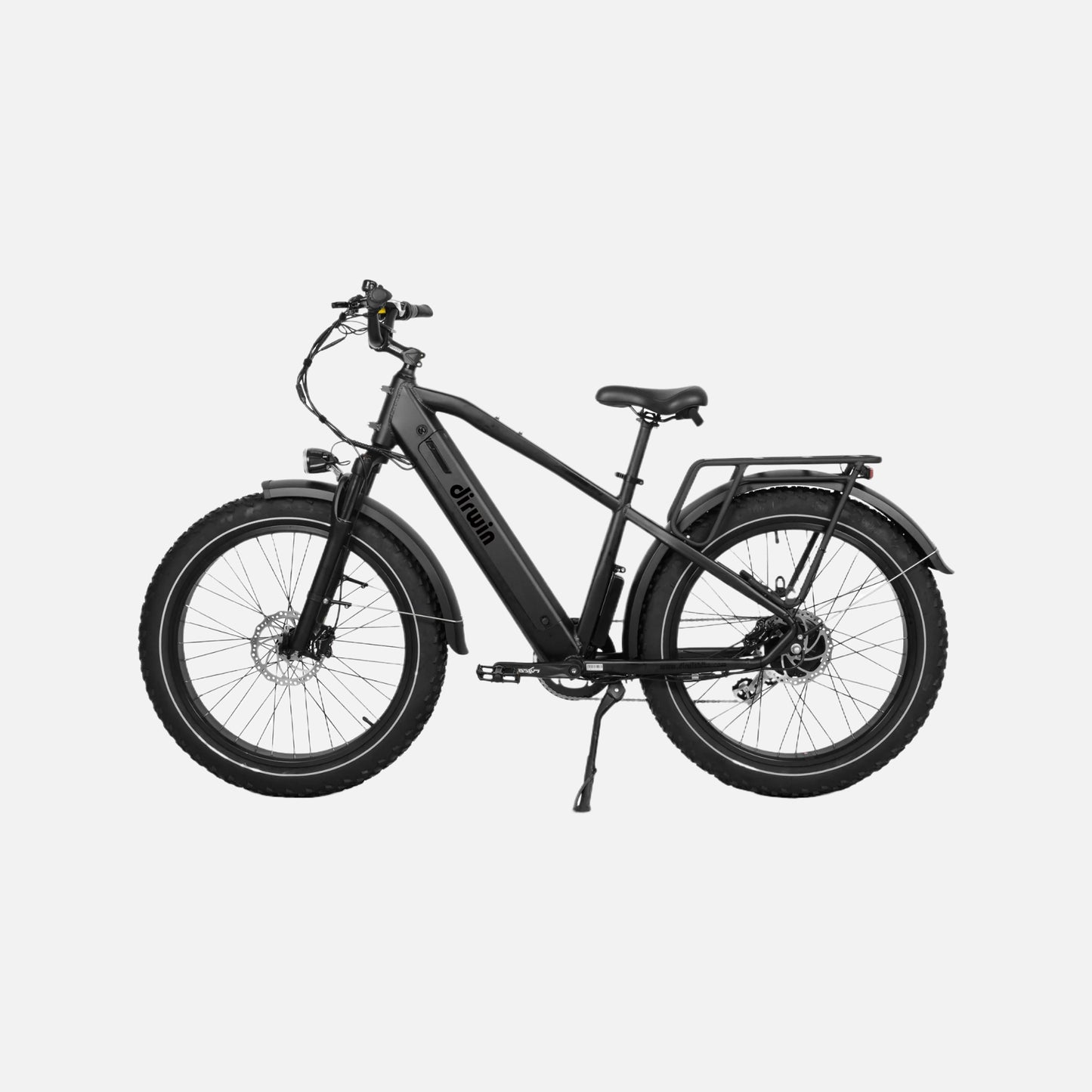

Driwin Pioneer Fat Tire eBike 750W Motor 23 MPH Top Speed 48V 15Ah Battery 50 Mile Range

Pioneer Fat Tire Electric Bike

Explore any terrain with confidence using the Pioneer Fat Tire Electric Bike. Equipped with a powerful 750W motor and a robust 48V 15Ah battery, this bike is designed for both thrilling off-roading adventures and reliable all-terrain travel.

Key Features

• Powerful Motor and Battery: 750W motor combined with a 48V 15Ah lithium battery provides robust performance and a top speed of 23 MPH.
• Extended Range: Travel up to 50 miles on a single charge, making it suitable for long rides and off-road exploration.
• Advanced Braking System: Logan Hydraulic 180mm brakes ensure reliable stopping power and safety.
• Certifications: UL2849 and UL2271 certifications guarantee quality and safety standards.
• Versatile Display: 3.5" TFT LCD color display keeps you informed with essential ride metrics.
• Durable Tires and Fork: 26"x4.0" Kenda fat tires and a hydraulic suspension fork offer excellent traction and comfort on rugged terrain.
• Lightweight Design: At 74.9 lbs (64 lbs without battery), it remains manageable while providing substantial durability.

Specifications

• Battery: 48V 15Ah Lithium Battery (11 lbs)
• Motor: 750 Watts
• Bike Frame: A6061 Aluminium Alloy (IPX5 Water Resistant)
• Display: 3.5" TFT LCD Color Display
• Brakes: 180mm Hydraulic
• Derailleur: 7-Speed Shimano Altus
• Freewheel: Shimano 7-Speed
• Shifter: Shimano 7S
• Front Fork: Deadlock Hydraulic Suspension Fork
• Charger: US-Standard 2A Smart Charger (compatible with all Dirwin batteries)
• Range: 30-50+ Miles
• Pedal Assist: 5 Levels
• Throttle: Half Twist
• Tires: 26"x 4.0" Fat Tire
• Saddle: HQ-Comfort Saddle
• Charging Time: 5-8 Hours
• Product Weight: 74.9 lbs (64 lbs without battery)
• Total Payload Capacity: 350 lbs
• Controller: 48V 22A
• Chain Ring: 46T
• Handle Bar: Φ22.2*700L
• Seat Post: Φ30.4*300L
• Seat Post Clamp: Φ35.0
• Recommended Rider Height: 5'4" - 6'4"

Geometry

• A. Total Length: 74.8"
• B. Handle Bar Height: 45.5"
• C. Wheelbase: 45"
• D. Minimum Seat Height: 30"
• E. Maximum Seat Height: 35.5"
• F. Chain Stay Length: 20"
• G. Standover Height: 31"
• H. Top Tube Length: 23"
• I. Wheel Diameter: 29"
• J. Head Tube Length: 6"
• K. Handle Bar Length: 27.5"
• L. Rear Rack Height: 31.5"
• M. Reach: 15.5"

Get your Pioneer Fat Tire Electric Bike in black today and conquer any terrain with ease and style.
