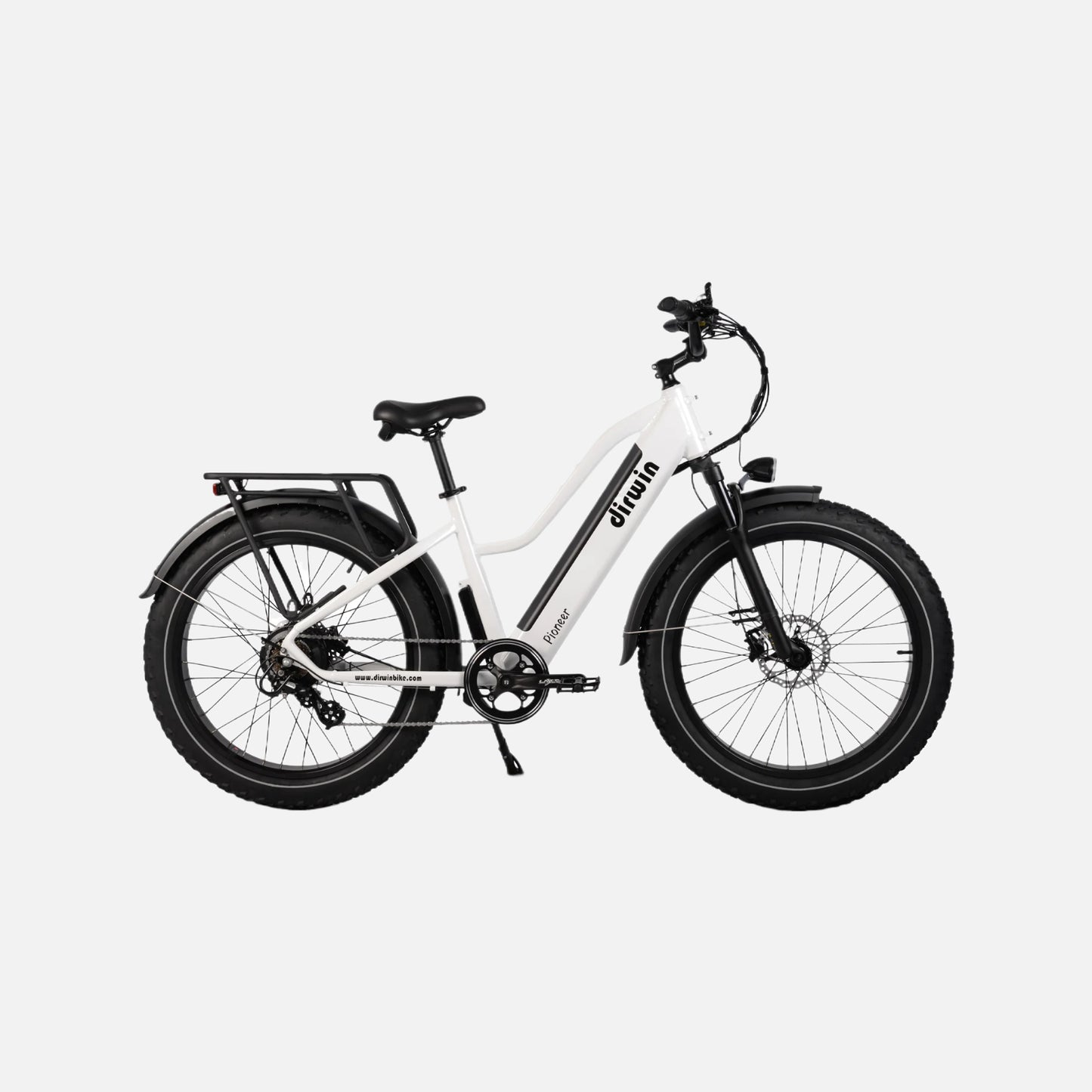

Driwin Pioneer Step-Through Fat Tire eBike 750W Motor 23 MPH Top Speed 48V 15Ah Battery 30-50 Mile Range

• Battery: Equipped with a powerful 48V 15Ah lithium battery, weighing approximately 11 lbs.
• Motor: Features a robust 750W motor, designed to handle diverse terrains.
• Bike Frame: Constructed from A6061 aluminum alloy, offering durability with IPX5 water resistance.
• Display: Comes with a 3.5" TFT LCD color display for clear and comprehensive readouts.
• Brakes: Features 180mm hydraulic brakes by Logan for excellent stopping power and control.
• Derailleur: Shimano 7-speed Altus derailleur for smooth gear transitions.
• Freewheel: Shimano 7-speed freewheel for reliable performance.
• Shifter: Shimano 7S shifter for easy gear shifting.
• Front Fork: Equipped with a Deadlock hydraulic suspension fork to absorb shocks and provide a smooth ride.
• Charger: Includes a US-standard 2A smart charger, compatible with all Dirwin batteries.
• Range: Capable of traveling 30-50+ miles on a single charge, depending on conditions and usage.
• Pedal Assist: Offers 5 levels of pedal assist to tailor the riding experience.
• Throttle: Half-twist throttle for smooth acceleration.
• Tires: Features 26" x 4.0" fat tires, ideal for stability and off-road capabilities.
• Saddle: HQ-Comfort saddle for added riding comfort.
• Charging Time: Takes approximately 5-8 hours to fully charge the battery.
• Product Weight: Weighs 74.9 lbs, or 64 lbs without the battery.
• Total Payload Capacity: Supports up to 350 lbs, accommodating a range of riders and gear.
• Controller: Includes a 48V 22A controller for efficient power management.
• Chain Ring: 46T chain ring for consistent power delivery.
• Handle Bar: Features a handle bar with a diameter of Φ22.2 and a length of 700mm.
• Seat Post: Seat post dimensions are Φ30.4 x 300mm.
• Seat Post Clamp: Measures Φ35.0 for secure adjustments.
• Recommended Rider Height: Suitable for riders between 5'4" and 6'4".

Geometry:

• Total Length: 74.8 inches
• Handle Bar Height: 45.5 inches
• Wheelbase: 45 inches
• Minimum Seat Height: 30 inches
• Maximum Seat Height: 35.5 inches
• Chain Stay Length: 20 inches
• Standover Height: 29.5 inches
• Top Tube Length: 23 inches
• Wheel Diameter: 29 inches
• Head Tube Length: 6 inches
• Handle Bar Length: 27.5 inches
• Rear Rack Height: 31.5 inches
• Reach: 15.5 inches

The Pioneer Step Through Fat Tire Electric Bike, available in Grey or White, is well-suited for activities like hunting, off-roading, and budget-friendly all-terrain adventures.
