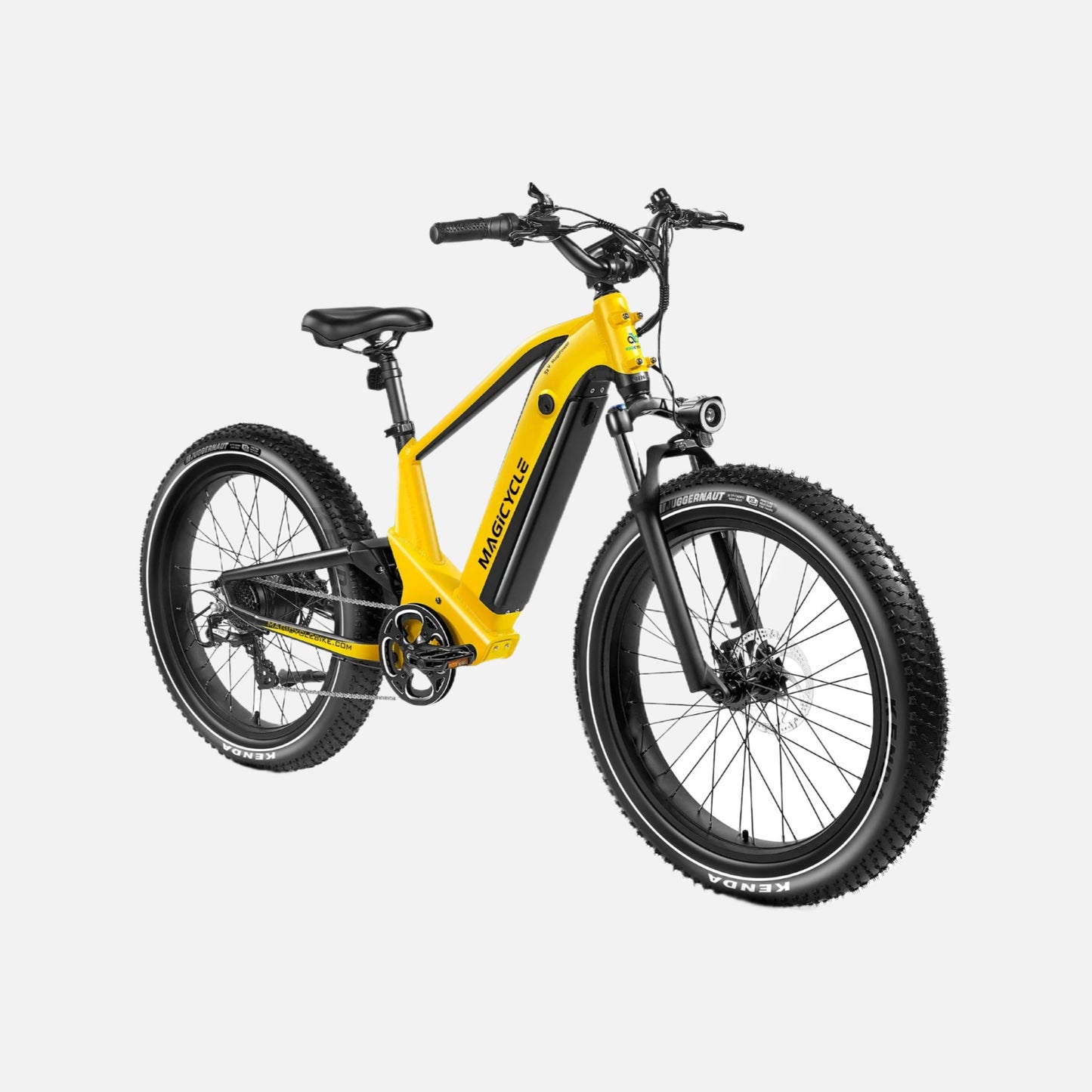

Magicycle Ocelot Pro 2.0 Cadence Sensor Ebike: Efficient Electric Bike with Cadence Sensor | 750W Motor, 28 MPH

Personalized Speed Adjustment

Effortlessly adjust the power levels from 0 to 7, tailored to your riding needs in various conditions. Additionally, customize the speed ratio for each level from 1% to 100% according to your preferences. Note: Higher percentages may lead to vigorous acceleration; ensure balanced riding during swift starts.

Range

Achieve an impressive range of up to 100 miles on a single charge, allowing for extended rides without frequent recharging.

Charging Time

Recharge your bike in approximately 4 to 7 hours, ensuring efficient and convenient power-up between rides.

Class 3(Ebikes can go up to 28mph with pedal assistance)

Frame Size

Equipped with an 18" frame, providing a sturdy and reliable structure suited for a variety of riders and riding styles.

Weight

The bike weighs 92.3 lbs (41.9 kg), balancing durability with manageable weight for ease of handling.

Total Payload Capacity

Support up to 450 lbs, accommodating various load requirements and ensuring robust performance.

Bike Frame

Constructed from 18" 6061 aluminum, offering a blend of strength and lightweight design for durability and performance.

Battery

Features a 52V 20Ah LG lithium battery, delivering powerful and long-lasting performance for your rides.

Charger

Includes a short-circuit proof 3.0A fast smart charger, designed for safe and rapid recharging.

Hub Motor

Powered by a 750W (1500W peak) 100Nm brushless gear motor, rated IP55 for protection against dust and water, providing reliable and efficient propulsion.

Display

Color LCD display with USB charging capabilities, allowing you to monitor bike performance and charge devices simultaneously.

Recommended Rider Heights

• Ideal for riders between 5'5" and 6'8", ensuring a comfortable fit for a wide range of users.

Controller

52V 750W FOC smart controller with a current range of 20 to 25 amps, rated IPX8 for water resistance, ensuring reliable control under various conditions.

Pedal Assist

Features a 7-level intelligent pedal assist system with a 12-magnet cadence sensor, offering enhanced support and efficiency during rides.

Package Dimensions

• Deer 26": 166 cm x 33 cm x 88.5 cm
• Deer 20": 154 cm x 32 cm x 77.5 cm

Components

• Tires: 26"x4.0" fat tires, providing improved stability and traction on diverse terrains.
• Front Light: 6V LED light, enhancing visibility and safety during low-light conditions.
• Front Fork: Alloy hydraulic lockout suspension fork, designed to absorb shocks and ensure a smooth ride.
• Chain: Durable KMC chain, ensuring reliable performance and longevity.
• Brake Lever: Aluminum alloy comfort grip levers with an integrated motor cutoff switch for enhanced safety.
• Saddle: Super soft cushion saddle, offering maximum comfort for long rides.
• Throttle: Half twist throttle, allowing precise speed control.
• Stem: MA-400 SSABK, providing adjustable and secure handlebar positioning.
• Lights: Integrated front and brake lights for increased visibility.
• Seat Post: Diameter of 33.9 mm and length of 250 mm, adjustable for optimal rider comfort.
• Pedal: Wellgo alloy pedals with reflectors, ensuring safety and durability.
• Crank: 53T, 170mm forged alloy crank with a dual-sided bashguard, providing durability and protection.
• Freewheel: Shimano 14-28T, ensuring smooth gear transitions.
• Kickstand: Heavy-duty aluminum kickstand, offering stable parking support.
• Gearing: Shimano 7-speed gear shift system, providing versatile riding options.
• Brake: 180mm hydraulic disc brakes, delivering powerful and reliable stopping power.
• Spokes: 13 gauge on the front wheel and 12 gauge on the back, ensuring robust wheel strength.
• Bike Frame: 18" 6061 aluminum frame, designed for strength, durability, and lightweight performance.
