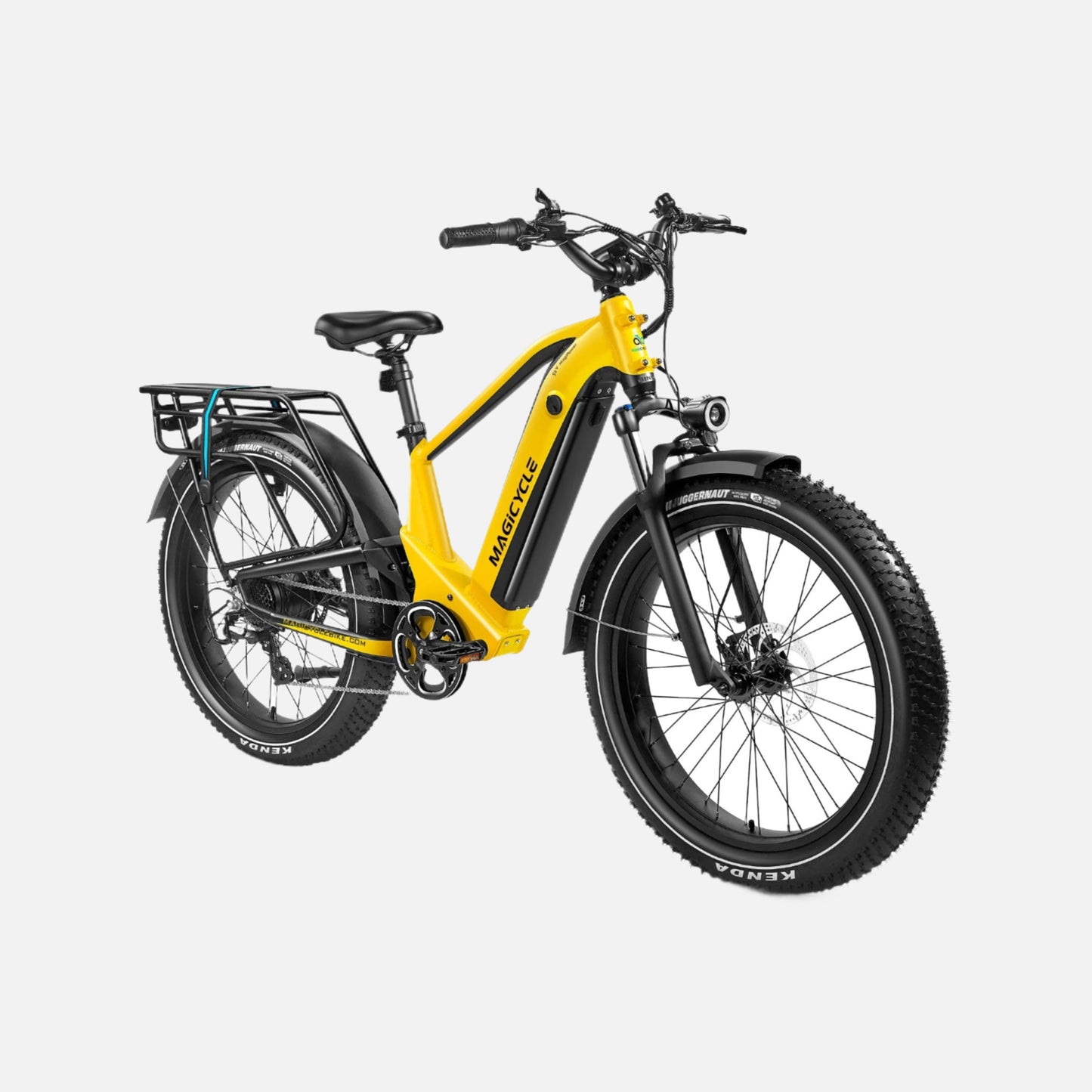

Magicycle Deer Stepover Full Suspension Ebike: Off-Road Electric Bike | 750W Motor, 28 MPH

Personalized Speed Adjustment

Easily customize your riding experience with 7 power levels, ranging from 0 to 7. Tailor the speed ratio for each level from 1% to 100% to match your riding needs and conditions.

Charging Time

Recharges fully in approximately 4 to 7 hours, ensuring minimal downtime between rides.

Class 3(Ebikes can go up to 28mph with pedal assistance)

Range

Enjoy a long-distance ride with a maximum range of up to 100 miles on a single charge.

Total Payload Capacity

Robust design supports a maximum payload capacity of 450 lbs, accommodating various load requirements.

Frame Size

Available in two sizes: 18 inches, suitable for versatile riding styles and preferences.

Battery

Equipped with a powerful 52V 20Ah LG lithium battery for reliable and extended performance.

Charger

Includes a short-circuit proof 3.0A fast smart charger for efficient and safe charging.

Hub Motor

Features a 750W (1500W peak) brushless gear motor with 100Nm of torque, rated IP55 for durability against dust and water.

Display

Color LCD display with USB charging capabilities, allowing you to monitor performance and charge devices on the go.

Weight

• Deer 26": Weighs 92.3 lbs (41.9 kg).
• Deer 20": Weighs 83 lbs (37.6 kg).

Recommended Rider Heights

• Deer 26": Ideal for riders between 5'5" and 6'8".
• Deer 20": Suitable for riders between 4'10" and 6'2".

Controller

Features a 52V 750W FOC smart controller with a current range of 20 to 25 amps, rated IPX8 for water resistance.

Pedal Assist

Includes a 7-level intelligent pedal assist system with a 12-magnet cadence sensor for enhanced riding support.

Package Dimensions

• Deer 26": 166 cm x 33 cm x 88.5 cm.
• Deer 20": 154 cm x 32 cm x 77.5 cm.

Tires

Fitted with 26"x4.0" fat tires for improved stability and traction.

Front Light

6V LED front light for visibility and safety in low-light conditions.

Front Fork

Alloy hydraulic lockout suspension fork to absorb shocks and provide a smooth ride.

Chain

Durable KMC chain for reliable performance.

Brake Lever

Aluminum alloy comfort grip levers with an integrated motor cutoff switch for enhanced control and safety.

Saddle

Super soft cushion saddle for maximum comfort during long rides.

Throttle

Half twist throttle for precise speed control.

Stem

MA-400 SSABK stem for adjustable and secure handlebar positioning.

Lights

Integrated front and brake lights for improved visibility and safety.

Seat Post

Diameter of 33.9 mm and length of 250 mm for adjustable height and comfort.

Pedal

Wellgo alloy pedals with reflectors for added safety and durability.

Crank

53T, 170mm forged alloy crank with a dual-sided bashguard for reliable pedaling and protection.

Freewheel

Shimano 14-28T freewheel for smooth gear transitions.

Kickstand

Heavy-duty aluminum kickstand for stable parking.

Gearing

Shimano 7-speed gear shift system for versatile riding options.

Brake

180mm hydraulic disc brakes for powerful and reliable stopping power.

Spokes

13 gauge spokes on the front wheel and 12 gauge on the back for robust wheel strength.

Bike Frame

Durable 18" 6061 aluminum frame, designed for strength and lightweight performance.
