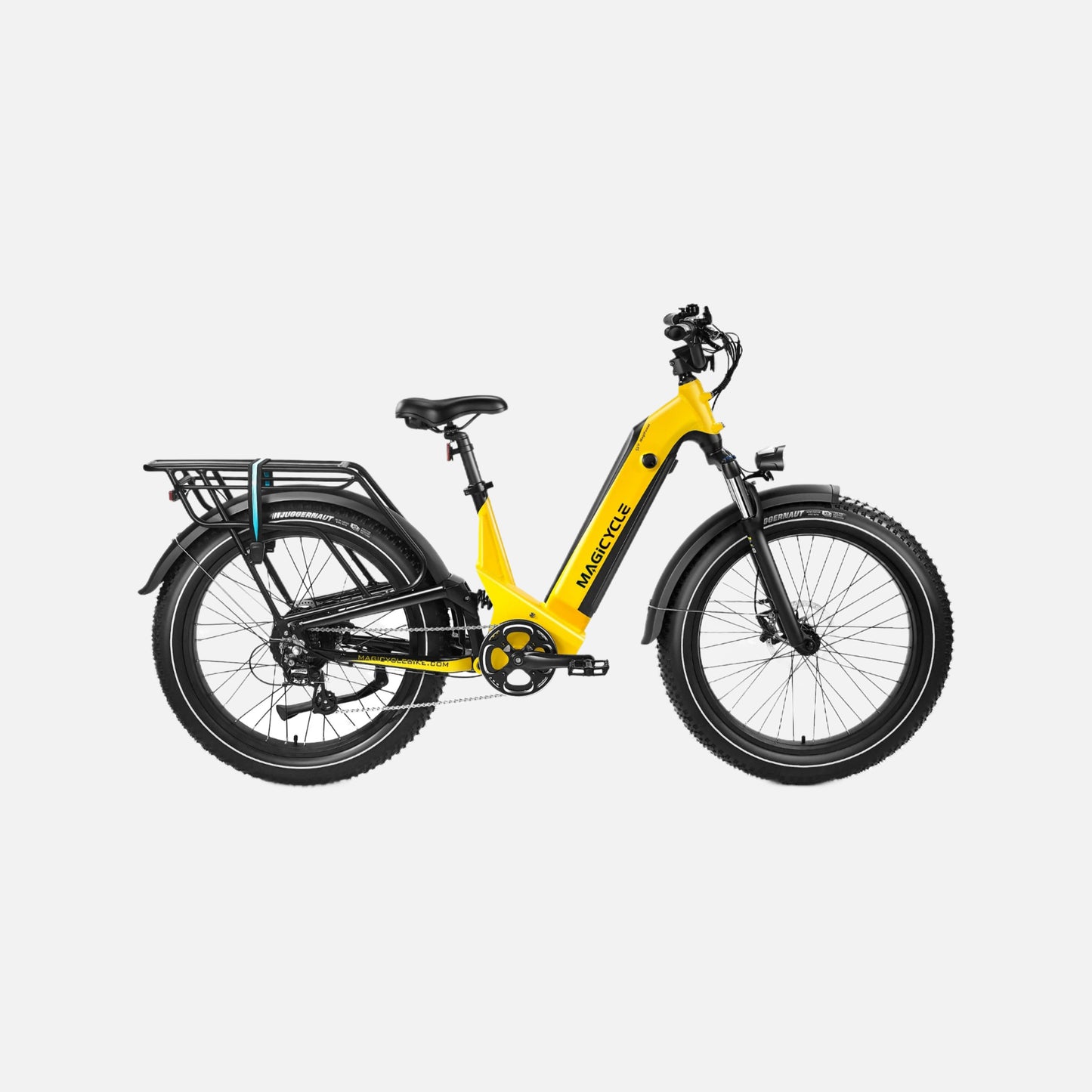

Magicycle Ocelot Pro 2.0 Torque Sensor Ebike: Powerful Electric Bike with Torque Sensor | 750W Motor, 28 MPH

Personalized Speed Adjustment

Adjust the power levels effortlessly from 0 to 7, tailored to meet your riding needs in any condition. Customize the speed ratio for each level from 1% to 100% to suit your preferences. Note: Higher percentages may lead to vigorous acceleration; ensure balanced riding during swift starts.

Charging Time

Recharge your bike in approximately 4 to 7 hours for optimal performance.

Class 3(Ebikes can go up to 28mph with pedal assistance)

Range

Travel up to 100 miles on a single charge, offering extensive range for long rides.

Total Payload Capacity

Support up to 450 lbs, accommodating various load requirements for added versatility.

Frame Size

Choose from an 18" frame, designed to fit a wide range of riders and riding styles.

Battery

Power your rides with a 52V 20Ah LG lithium battery for reliable, long-lasting performance.

Charger

Includes a short-circuit proof 3.0A fast smart charger for quick and safe recharging.

Hub Motor

Equipped with a 750W (1500W peak) 100Nm brushless gear motor, rated IP55 for resistance to dust and water.

Display

Features a color LCD display with USB charging capabilities for monitoring performance and charging devices.

Weight

• Deer 26": 92.3 lbs (41.9 kg)
• Deer 20": 83 lbs (37.6 kg)

Recommended Rider Heights

• Deer 26": Ideal for riders between 5'5" and 6'8"
• Deer 20": Suitable for riders between 4'10" and 6'2"

Controller

Includes a 52V 750W FOC smart controller with a current range of 20 to 25 amps, rated IPX8 for water resistance.

Pedal Assist

Features a 7-level intelligent pedal assist system with a 12-magnet cadence sensor for enhanced riding support.

Package Dimensions

• Deer 26": 166 cm x 33 cm x 88.5 cm
• Deer 20": 154 cm x 32 cm x 77.5 cm

Components

• Tires: 26"x4.0" fat tires for improved stability and traction.
• Front Light: 6V LED light for enhanced visibility.
• Front Fork: Alloy hydraulic lockout suspension fork to absorb shocks and ensure a smooth ride.
• Chain: Durable KMC chain for reliable performance.
• Brake Lever: Aluminum alloy comfort grip levers with a motor cutoff switch for safety.
• Saddle: Super soft cushion saddle for maximum comfort.
• Throttle: Half twist throttle for precise speed control.
• Stem: MA-400 SSABK for adjustable handlebar positioning.
• Lights: Integrated front and brake lights for increased visibility.
• Seat Post: Diameter 33.9 mm, length 250 mm for adjustable height and comfort.
• Pedal: Wellgo alloy pedals with reflectors for safety.
• Crank: 53T, 170mm forged alloy crank with a dual-sided bashguard for durability.
• Freewheel: Shimano 14-28T freewheel for smooth gear transitions.
• Kickstand: Heavy-duty aluminum kickstand for stable parking.
• Gearing: Shimano 7-speed gear shift system for versatile riding options.
• Brake: 180mm hydraulic disc brakes for powerful and reliable stopping power.
• Spokes: 13 gauge on the front wheel and 12 gauge on the back for robust wheel strength.
• Bike Frame: 18" 6061 aluminum frame, designed for strength and lightweight performance.
