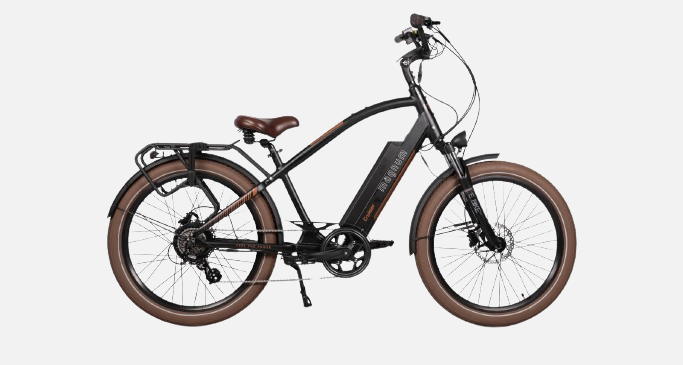

Magnum Cruiser 2.0 Ebike: Comfortable Electric Bike | 25 MPH, 500W Motor

A beautifully designed beach cruiser style electric bike well suited to urban riding or commuting. This bike features a powerful 500 watt motor paired with a large 48 volt 15 amp hour battery pack, offering both pedal assist and throttle mode.

Highlights

• Category: Cruiser
• Class: Can be configured to a Class 1, 2, or 3 E-Bike.
• Frame Type: High-step, Cruiser
• Seating: Cruise
• Perfect For: Paved / Light Trails / Beach

The Battery

• The Cruiser’s large, 48W battery can handle all the demands of a cargo bike, and it will power a range of up to 50 miles, depending on cargo weight, wind and terrain variables.
  • 15Ah
  • 50 miles (80 Kilometers) Max Range
  • 7.5 Hours Charge Time

Cruise with Comfort and Style

• Ergonomic Pedal-Forward Position: The ergonomic, pedal forward cruiser position lets you cruise the roads in comfort and style. Large, plush saddles and wide tires for stability and comfort complete the stylish, carefree Magnum Cruiser experience.

Aluminum Rear Rack

• The included aluminum rear rack is sturdy and strong, and includes straps to secure your load.

Powerful Bafang Motor

• The powerful Bafang geared rear hub motor produces a maximum of 750W to summit climbs and power your longest rides.

Velofox LCD Display

• The illuminated LCD display lists Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, and Trip Time.

Powerful Logan Hydraulic Disc Brakes

• Logan Hydraulic Disc brakes have large, sturdy rotors and the power and grip to stop you quickly.

Integrated Lights

• Front and rear lights provide safety and visibility, and can be turned off during sunny daylight rides.

Component Overview

Electronic Details

• Motor Brand: Bafang
• Motor Type: Rear Hub-Drive
• Motor Nominal Output: 500 Watts
• Motor Peak Output: 750 Watts
• Battery Brand: Samsung Cells
• Battery Voltage: 48 Volts
• Battery Ah: 15Ah
• Battery Wh: 720Wh
• Battery Chemistry: Li-NMC
• Battery Charge Time (from empty): 7.5 Hours
• Minimum Range: 30 Miles (48 Kilometers)
• Maximum Range: 50 miles (80 Kilometers)
• Display Type: Magnum Branded VeloFox, 8 x 7 cm, Backlit Monochrome LCD
• Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
• Drive Mode: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
• Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle
• Lights: Integrated Front and Rear Lights

Mechanical Details

• Frame Material: Aluminum Alloy
• Frame Size: 19.75” (50 cm)
• Fork Details: RST E-Bike 30 Suspension Fork with Lockout and Preload Adjustment
• Gearing Details: Shimano 7-Speed
• Shifter Details: Shimano 7-Speed
• Crank: Aluminum Alloy, 52T, 170mm
• Pedals: Wellgo
• Stem: Tool-Free Adjustable
• Brakes: Hydraulic Disc Brakes
• Grips: Ergonomic Faux Leather
• Saddle: Plush Cruiser
• Tire Brand: 26 x 2.4 Brown w/Reflective
• Wheel Size: 26”
• Fenders: Front and Rear Included
• Chain: KMC

Measurements

• Seat Tube: 20” (50.5 cm)
• Reach: 11” (28 cm)
• Stand Over Height: 33” (84 cm)
• Virtual Top Tube Length: 26.5” (67 cm)
• Min Saddle Height: 23.5” (60 cm)
• Max Saddle Height: 30.5” (77.5 cm)
• Width: 28.5” (72 cm)
• Wheelbase: 49.5” (126 cm)
• Length: 76” (193 cm)
• Total Weight: 67 lbs (30 kg)
• Battery Weight: 9 lbs (4 kg)
• Recommended Minimum Rider Height: 5’5” (165 cm)
