Magnum Pathfinder 500 Ebike: Versatile Electric Bike | 25 MPH, 500W Motor

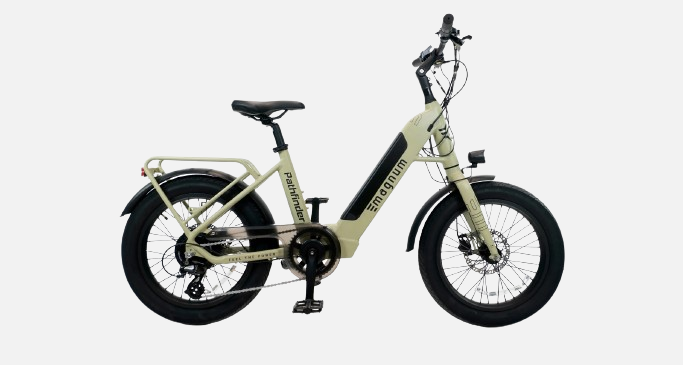

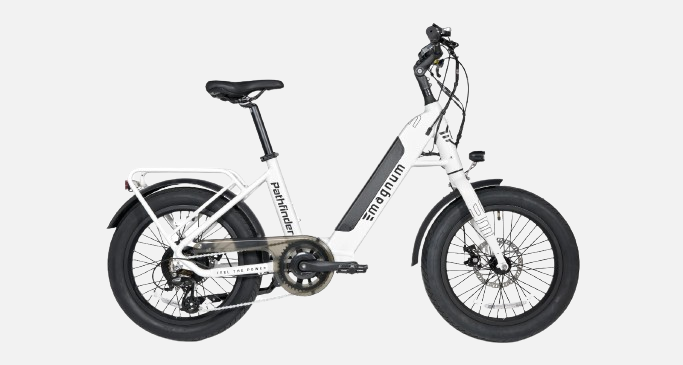

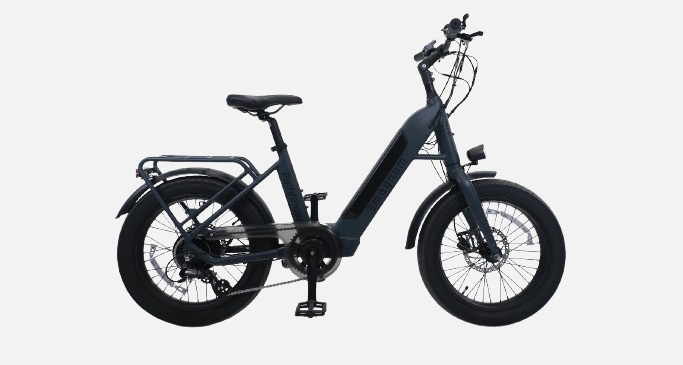

The Magnum Pathfinder 500 features a compact frame with a fully integrated battery. Its standout feature is its 20" fat tires, making it a versatile choice for a variety of riding conditions. The power system includes a 500W motor and a 48V, 13Ah battery.

Battery: The Magnum Pathfinder 500 is powered by a long-range 48V / 13Ah / 624Wh battery, seamlessly integrated into the frame for a sleek look. It supports rides up to 50 miles, depending on factors like body and cargo weight, terrain, wind direction, and pedal assist level.

• Battery Capacity: 13Ah
• Max Range: 50 miles (80 kilometers)
• Charge Time: 6.5 hours

Ride Smoother:

• Wheels: 20″ x 3” fat tires for improved handling over potholes and uneven pavement, providing extra traction, control, and comfort.

Strong, Versatile, and Compact Frame: The rigid aluminum frame with a step-through design is easy to mount and dismount, providing a strong and reliable platform for the bike.

Backlit LCD Display: The illuminated LCD display provides essential ride information, including Battery Charge Level, Current Speed, Assist Level, Odometer, Trip Distance, Average Speed, and Max Speed.

Powerful 500W Rear Geared Hub Motor: The 500W motor, with 6 modes of pedal assist, enables speeds of up to 25 mph.

Bright, Integrated Front and Rear Lights: The integrated front headlight and brake-activated rear taillight ensure clear visibility and safety on the road.

Electronic Details:

• Motor Brand: Vision In-House
• Motor Type: Rear Hub-Drive
• Motor Nominal Output: 500 Watts
• Motor Peak Output: ~650 Watts
• Battery Brand: LG Cells
• Battery Chemistry: Li-NMC
• Minimum Range: 25 miles (40 kilometers)
• Maximum Range: 50 miles (80 kilometers)
• Display Type: Vision LCD Display
• Display Readouts: Battery Charge Level, Current Speed, Assist Level, Odometer, Trip Distance, Average Speed, Max Speed
• Drive Mode: Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode
• Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle
• Lights: Integrated Front and Rear Lights

Mechanical Details:

• Frame Material: Aluminum Alloy
• Frame Size: 15.75” (40 cm)
• Fork Details: Rigid Aluminum Alloy
• Gearing Details: Shimano 7-Speed
• Shifter Details: Shimano 7-Speed
• Crank: Aluminum Alloy, 44T, 165mm
• Pedals: Wide Plastic Platform with Reflectors
• Stem: Adjustable Aluminum Alloy
• Brakes: Hydraulic Disc Brakes
• Grips: Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle
• Saddle: Velo Gel Comfort
• Tire Brand: CST Big Boat 20 x 3.0
• Wheel Size: 20″
• Fenders: Front and Rear Included
• Chain: KMC Z-Chain

Measurements:

• Seat Tube: 15.75″ (40 cm)
• Reach: 17″ (43 cm)
• Stand Over Height: 16″ (40 cm)
• Virtual Top Tube Length: 24″ (61 cm)
• Min Saddle Height: 20.5″ (52 cm)
• Max Saddle Height: 29.5″ (75 cm)
• Width: 24″ (61 cm)
• Wheelbase: 43″ (109 cm)
• Length: 63.75″ (162 cm)
• Total Weight: 62 lbs (28 kg)
• Battery Weight: 7.5 lbs (3.4 kg)
• Recommended Minimum Rider Height: 4’10”
• Max Load Capacity: 265 lbs. (100 kg)
