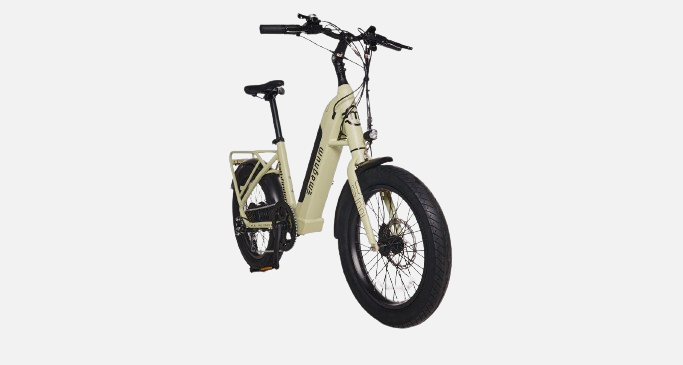

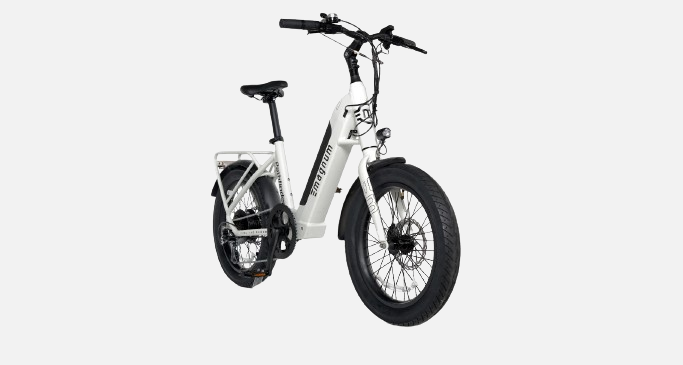

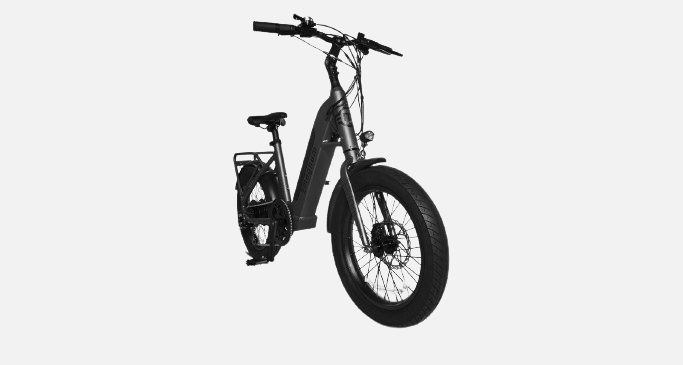

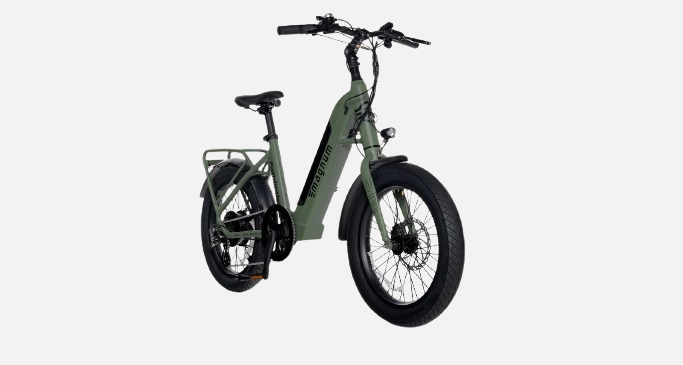

Magnum Pathfinder T Ebike: Powerful Electric Bike | 25 MPH, 500W Motor

The Magnum Pathfinder T is a versatile e-bike perfect for commuting, recreation, exercise, and more. Its unisex step-through frame accommodates riders of all sizes and abilities. Equipped with a Torque pedal assist, it offers extra control for a smooth ride.

Highlights:

• Category: Fat Tire
• Class: Configurable to Class 1, 2, or 3 E-Bike
• Frame Type: Low-step
• Seating: Relaxed
• Perfect For: Gravel, Paved, and Snow terrains

The Battery: The Magnum Pathfinder T features an integrated, long-range 48V / 17.5Ah / 840Wh battery, enabling rides up to 55 miles depending on body and cargo weight, terrain, wind direction, and pedal assist level.

• Battery Capacity: 17.5Ah
• Max Range: 55 miles (89 kilometers)
• Charge Time: 8.75 hours

Torque Sensor Pedal Assist: Pedal Assist for smoothness and control. The Torque Sensor Pedal Assist amplifies the rider’s power on the pedals with electric motor power, providing a smooth and controlled riding experience.

Specifications:

• Fork: Rigid Aluminum Alloy
• Stem: Adjustable Aluminum Alloy
• Tires: CST Big Boat 20" x 3"
• Brakes: Hydraulic Disc Brakes
• Saddle: Velo Gel Comfort
• Crankset: Aluminum Alloy, 44T, 165mm
• Shifters: Shimano 7-Speed
• Tape/Grips: Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle

Accessories & Extras:

• Rear rack
• Front and rear lights
• Center-mounted single-side kickstand
• Front and rear fenders
• Bottle cage and front carrier mounts

Motor:

• Rear Gear Hub-Drive Motor with 500W nominal output
• Speed: 25 mph with pedal assist, 20 mph with throttle

Pedals: Wide plastic platform with reflectors

Battery:

• 48V, 17.5Ah, 840Wh

Charger:

• 48V / 2A
• Range per charge: 25-60 miles

Controller/Display:

• Battery charge level (infographic with 5 bars)
• Current speed
• Assist level (0-5 for Class 1; 0-6 for Class 2 & 3)
• Odometer
• Trip distance
• Average speed
• Max speed
• Torque sensing pedal assist
• Twist throttle
• Walk mode
