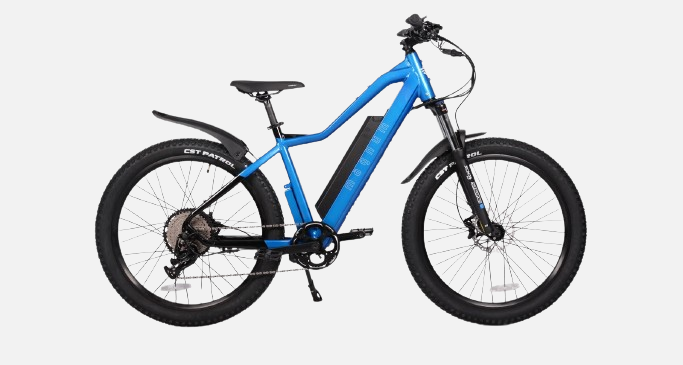

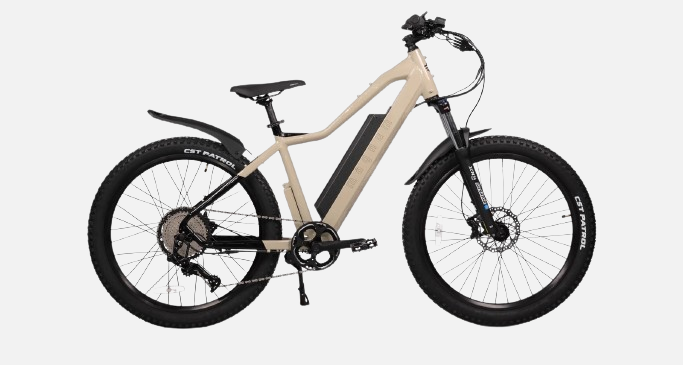

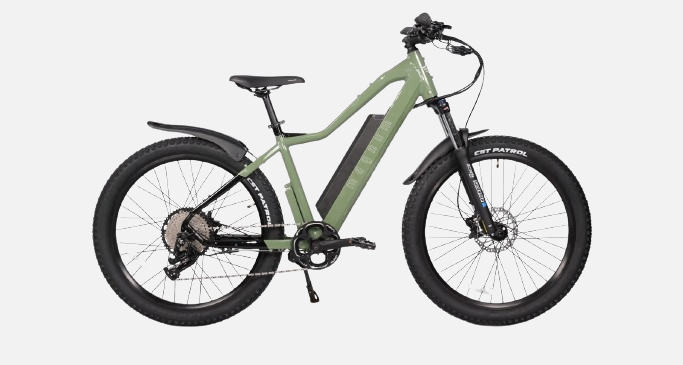

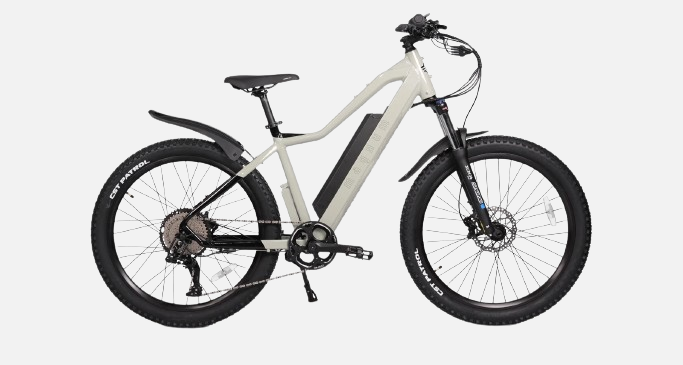

Magnum Peak T5 Ebike: High-Performance Electric Bike | 25 MPH, 500W Motor

he Magnum Peak T5 is designed for adventures off the beaten path. With a torque pedal assist sensor, it combines the power of the rider and the motor for ultimate smoothness and control.

Electronic Details:

Motor:

• Brand: Bafang
• Type: Rear Hub-Drive
• Nominal Output: 500 Watts
• Peak Output: 750 Watts

Battery:

• Brand: Samsung Cells
• Voltage: 48 Volts
• Capacity: 15Ah
• Energy: 720Wh
• Chemistry: Li-NMC
• Charge Time: 7.5 Hours
• Range: 30-50 miles (48-80 kilometers)

Display:

• Type: Magnum Branded VeloFox, 8 x 7 cm, Backlit Monochrome LCD
• Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
• Drive Mode: Torque Sensor Pedal Assist, Trigger Throttle, Walk Mode
• Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle
• Lights: Front light controlled from display, Rear light brake activated (Rear light not included)

Mechanical Details:

Frame:

• Material: Aluminum Alloy
• Size: 19” (48 cm)

Fork:

• Details: SR Suntour XCM34-Boost Suspension Fork, 120mm travel

Gearing:

• Details: Microshift A11-X 11-Speed
• Shifter: Microshift A11-X 11-Speed
• Crank: Aluminum Alloy, 42T, 170mm

Brakes:

• Type: Logan 4-Piston Hydraulic Disc Brakes

Grips:

• Type: Black

Saddle:

• Brand: Selle Royal Essenza+

Tires:

• Brand: CST Patrol 27.5 x 2.8 knobby tires

Pedals:

• Brand: Wellgo

Stem:

• Type: Magnum 60mm

Chain:

• Brand: KMC 11-Speed

Fenders:

• Front and Rear Included

Measurements:

• Seat Tube: 19” (48 cm)
• Reach: 14.5” (37 cm)
• Stand Over Height: 31” (78.5 cm)
• Virtual Top Tube Length: 23.25” (59 cm)
• Min Saddle Height: 22” (56 cm)
• Max Saddle Height: 31” (78.5 cm)
• Width: 28.75” (73 cm)
• Wheelbase: 45.75” (116 cm)
• Length: 74” (188 cm)
• Total Weight: 60 lbs (27.25 kg)
• Battery Weight: 9 lbs (4.1 kg)
• Rider Minimum Height: 5’4”

Class:

• Configurable to Class 1, 2, or 3 E-Bike

Battery:

• Range: Up to 50 miles (80 kilometers)
• Capacity: 15Ah
• Charge Time: 7.5 Hours

Torque-Sensing Pedal Assist:

• Amplifies your effort by adding just the right amount of power from the motor, providing a ride that feels like a regular bicycle but with greater ease and comfort.

CST Patrol Tires:

• Versatile 27.5 x 2.8 knobby tires offer a balance of low rolling resistance and great traction for various trail conditions.

Logan Hydraulic Brakes:

• 4-Piston disc brakes for consistent, controlled stops in all conditions, and prolonged rim life.

SR Suntour XCM34-Boost Suspension Fork:

• Offers 120mm of travel to smooth out rough terrain.

Microshift A11-X 11-Speed Cassette:

• Provides a wide variety of gear ratios for varying terrain and trail conditions.

Bafang 500W Rear-Mounted Gear Hub Motor:

• Delivers the power needed to tackle the toughest trails.
