Magnum Pilot Hub Ebike: Efficient Electric Bike | 28 MPH, 500W Motor

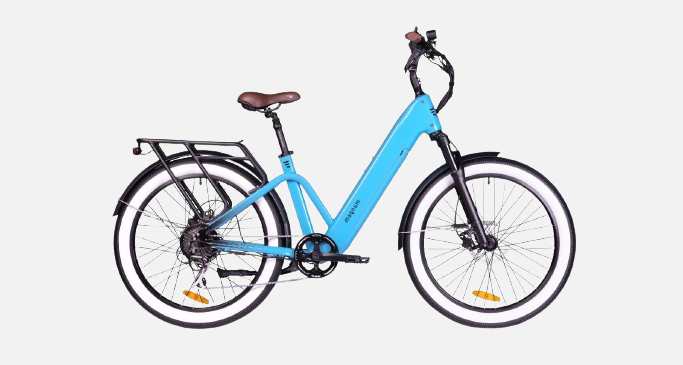

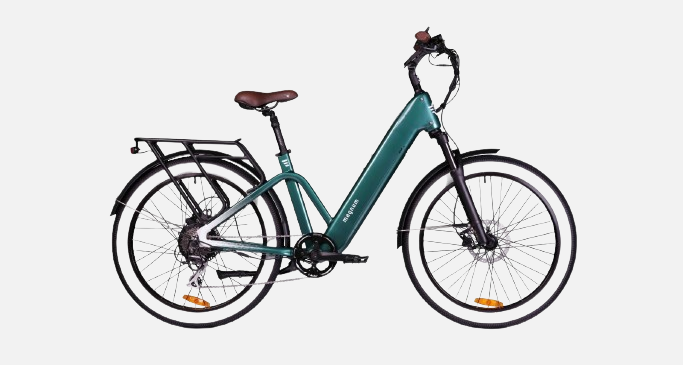

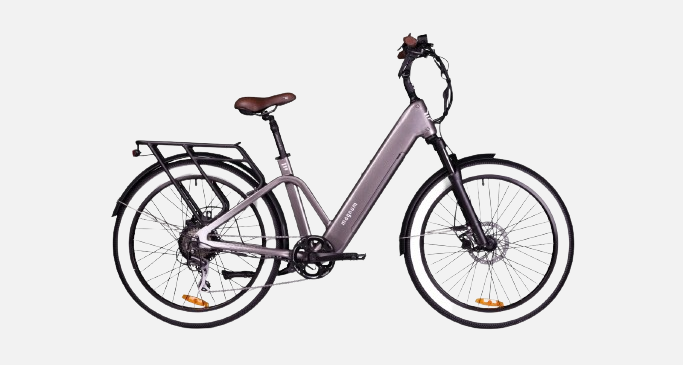

The Magnum Pilot Hub Drive combines classic design with modern technology to deliver a versatile and powerful riding experience. With a fully integrated and color-matched 15Ah battery, this e-bike can take you up to 50 miles per charge. The low-step frame, responsive torque sensor, and throttle provide comfort and control for any journey.

Battery:

• Type: Fully integrated, color-matched
• Capacity: 15Ah
• Voltage: 48V
• Energy: 720Wh
• Brand: Samsung Cells
• Chemistry: Li-NMC
• Charge Time: 7.5 Hours
• Range: 25-50 miles (40-80 kilometers)

Responsive PAS Control:

• Sensor: Smooth Torque Sensor
• Function: Effort-based assistance, providing power based on how hard you pedal

Highlights:

• Category: Touring
• Class: Configurable to Class 1, 2, or 3 E-Bike
• Frame Type: Low-step
• Seating: Relaxed
• Perfect For: Paved roads, light trails, recreation

Electronic Details:

• Motor Brand: Bafang
• Motor Type: Hub-Drive
• Nominal Output: 500W
• Peak Output: 750W
• Display Type: Magnum Branded VeloFox, 8 x 7 cm, Backlit Monochrome LCD
• Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
• Drive Mode: Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode
• Top Speed: Up to 28 mph with Pedal Assist, 20 mph with Throttle
• Lights: Integrated front and rear lights

Mechanical Details:

• Frame Material: Aluminum Alloy
• Fork: Suspension with 100mm travel and Lock-Out
• Gearing: Shimano 8-Speed 11-32T
• Shifter: Shimano 8-Speed
• Crank: Aluminum Alloy, 170mm
• Brakes: Tektro Hydraulic
• Grips: Brown Faux Leather
• Saddle: Selle Royal Freeway
• Tires: 26 x 3.0
• Wheel Size: 26”
• Pedals: Wellgo
• Stem: Tool-free Adjustable
• Chain: KMC 8-Speed
• Fenders: Front and Rear Included

Measurements:

• Total Weight: 74.5 lbs
• Battery Weight: 8.5 lbs (3.9 kg)
• Recommended Minimum Rider Height: 5’0”

What’s Included:

• Kickstand: Center-Mounted Single Side Adjustable Length Kickstand
• Bell: Included
• Charger: 54.6V 2A Charger
• Rear Rack: Included
• Fenders: Front and Rear Included
• Accessory Mounts: Built-In Head Tube and Top Tube Accessory Mounts

The Magnum Pilot Hub Drive is perfect for those who value both style and substance in their e-bike, offering a smooth, powerful ride with all the necessary features for an enjoyable experience.
