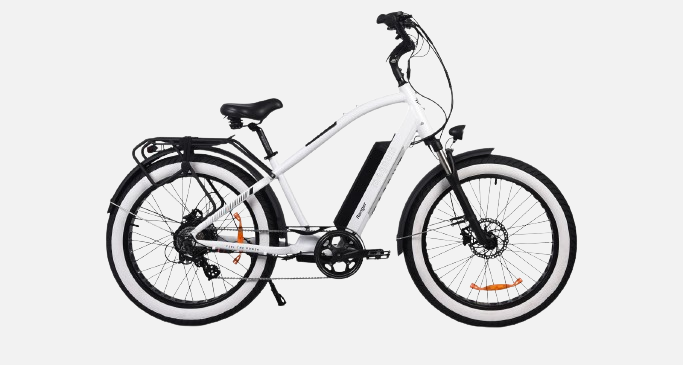

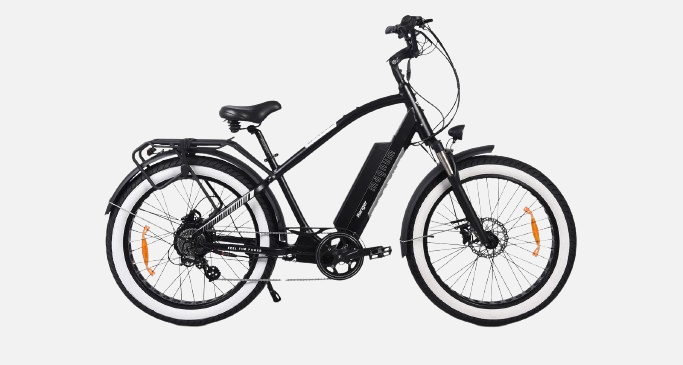

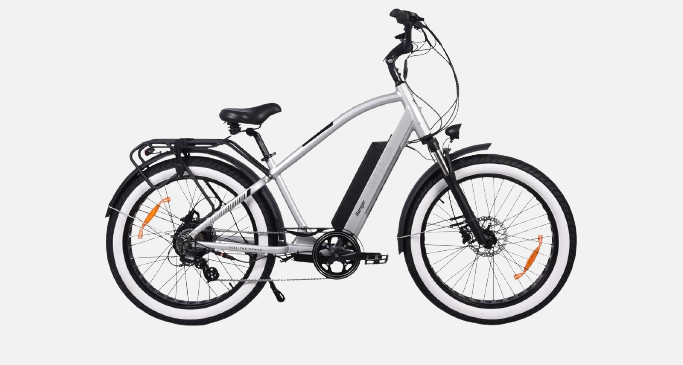

Magnum Ranger 2.0 Ebike: Rugged Electric Bike | 28 MPH, 750W Motor

The Magnum Ranger 2.0 offers a comfortable riding position with a slightly reclined seat and pedals out front, making it ideal for a relaxed and stylish ride. The large, plush saddle and wide tires provide stability and comfort, perfect for both leisurely rides and more adventurous outings.

Battery:

• Type: Jumbo 48W battery
• Capacity: 20Ah
• Voltage: 48V
• Energy: 960Wh
• Range: Up to 65 miles (105 kilometers) depending on cargo weight, wind, and terrain variables
• Charge Time: 10 hours

Power and Performance:

• Motor: Das-Kit 750W geared rear hub motor (1000W peak output)
• Top Speed: Up to 28 mph with pedal assist, 20 mph with throttle
• Drive Mode: Cadence sensing pedal assist, trigger throttle, walk mode

Display:

• Type: Das-Kit C7, Fixed, Backlit, Monochrome LCD
• Readouts: Battery level, assist level, current speed, power output, trip distance, odometer, range, trip time

Safety and Comfort:

• Brakes: Tektro hydraulic disc brakes with large, sturdy rotors
• Lights: Integrated front and rear lights for safety and visibility
• Frame: Sleek, stout aluminum frame with a touch of style and nostalgia
• Rear Rack: Sturdy aluminum rack with straps for securing loads

Mechanical Details:

• Frame Material: Aluminum alloy
• Frame Size: 20" (51 cm)
• Fork: Coil spring suspension with lockout, 70mm travel
• Gearing: Shimano 7-speed (14-28t)
• Shifter: Shimano 7-speed
• Crank: Alloy, 48t, 170mm
• Pedals: Wellgo
• Stem: Tool-free adjustable
• Brakes: Hydraulic disc brakes
• Grips: Faux leather
• Saddle: Padded saddle with suspension
• Tires: 26 x 4.0
• Wheel Size: 26”
• Fenders: Front and rear included
• Chain: KMC

Measurements:

• Seat Tube: 20" (51 cm)
• Reach: 10.75” (27 cm)
• Stand Over Height: 34.5” (88 cm)
• Virtual Top Tube Length: 22.5” (57 cm)
• Min Saddle Height: 25.25” (64 cm)
• Max Saddle Height: 31.25” (79.5 cm)
• Width: 28” (71 cm)
• Wheelbase: 49.25” (125 cm)
• Length: 78” (198 cm)
• Total Weight: 76 lbs (34.5 kg)
• Battery Weight: 9 lbs (4 kg)
• Recommended Minimum Rider Height: 5’5”

The Magnum Ranger 2.0 is designed to take you where your heart desires in comfort and style, offering a stable and powerful ride that can tackle steeper hills and dunes effortlessly.
