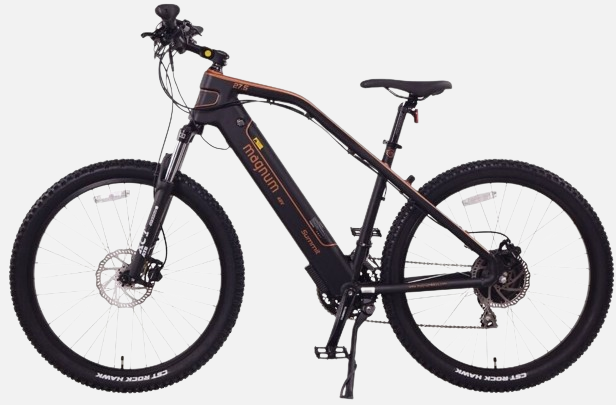

Magnum Summit Ebike: Climbing-Capable Electric Bike | 25 MPH, 500W Motor

THE BATTERY

At the core of the Magnum Summit Bike is its integrated 48V / 13Ah / 624Wh battery, delivering power for rides spanning up to 50 miles. Range varies with factors like rider weight, cargo, terrain, wind conditions, and pedal assist level.

Fixed, Backlit, Monochrome LCD Display

The cockpit features a large, backlit LCD display that ensures clear visibility during night rides, enhancing safety and control.

Strong Hydraulic Disc Brakes

Equipped with front and rear Tektro hydraulic disc brakes, the Magnum Summit ensures consistent and controlled stops in all weather conditions, extending rim longevity.

Powerful Das-Kit 500W Motor

The Magnum Summit boasts a robust Das-Kit 500W rear geared hub motor, peaking at 750 Watts, offering responsive acceleration for swift hill climbs and accommodating riders of various sizes.

CST Rock Hawk Knobby Tires

Mounted with CST Rock Hawk knobby tires, this bike provides excellent grip and traction, ideal for tackling off-road adventures with confidence.

Shimano Acera Gear System 24 Speed 3×8

Featuring a Shimano Acera 24-speed 3×8 drivetrain, the Magnum Summit offers a broad range of gears suitable for navigating steep trails and rough terrain.

Comfortable Front Suspension Fork

The SR Suntour XCT ATB Spring Suspension Fork with 80mm travel ensures a plush ride, absorbing bumps and shocks for enhanced comfort on diverse surfaces.

Magnum Summit Description

• Body Position: Forward
• Electric Bike Class: Throttle On-demand (Class 2), Speed Pedelec (Class 3) (Throttle can be removed for Class 1)
• Max Load: 265 lbs

Electronic Details

• Motor Type: Das-kit R4 Rear Geared Hub Motor
• Motor Output: 48V 500W
• Battery Voltage / Amp Hours / Watt Hours: 48V / 12.8Ah / 614Wh
• Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
• Estimated Charge Time: 6.5 Hours
• Estimated Min And Max Range: 25 to 55 Miles (Depending On Riding Style, Terrain, Rider Weight and Pedal Assist Level)
• Display Type: Fixed, Backlit, Monochrome LCD
• Display Records: Power Output Indicator (6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
• Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
• Top Speed: 25 mph With Pedal Assist, 20 mph Throttle Only

Magnum Summit Bike Details

• Frame Type: High Step with fully integrated battery

• Frame Material: Aluminum Alloy

• Fork Details: SR Suntour XCT ATB Spring Suspension, 100mm, 80mm

• Gearing Details: 24 Speed 3×8

• Shifter Details: Shimano Shifter

• Cranks: Shimano

• Stem: Promax, Aluminum Alloy

• Brake Details: Tektro Hydraulic Disc Brakes

• Grips: Velo Flat Rubber

• Saddle: Promax

• Seatpost / Seatpost Dimensions: Promax

• Rims: Aluminum Alloy

• Tires: CST Rock Hawk

• Wheel Size: 27.5″ (29″) X 2.4

• Max Seat Height: 36″ (Measured from the bottom pedal stroke)

• Min Seat Height: 28″ (Measured from the bottom pedal stroke)

• Seat Tube: 16″

• Standover Height: 30″

• Handlebar Height: 43.5″ – 46″

• Handlebar Width: 30″

• Total Length: 72″

• Wheelbase: 43″
