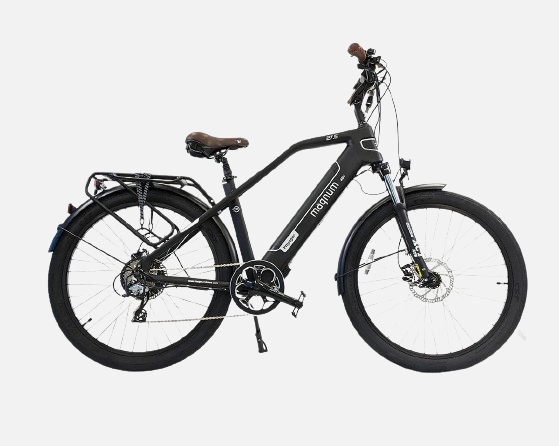

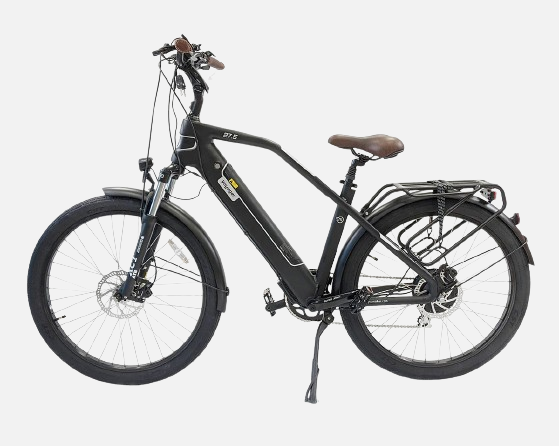

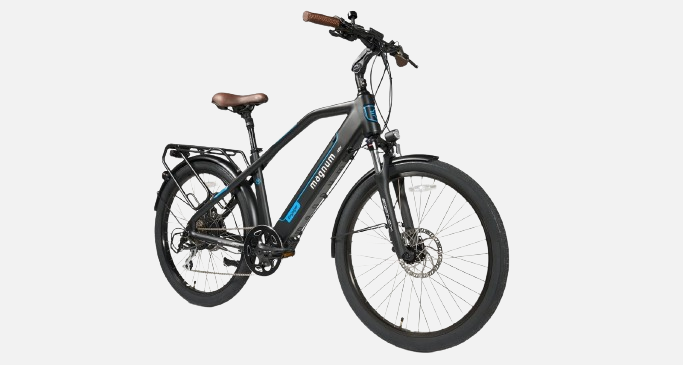

Magnum Voyager Ebike: Long-Range Electric Bike | 25 MPH, 500W Motor

Electronic Details

• Motor: The Magnum Pathfinder features a powerful Das-Kit rear hub-drive motor with a nominal output of 500 Watts and a peak output of 750 Watts.
• Battery: Equipped with a high-quality LG Cells battery pack, the bike operates on 48 volts with a capacity of 12Ah (576Wh), providing ample power for extended rides.
• Charge Time: From empty, the battery charges fully in approximately 6 hours.
• Range: Offers a range of up to 40 miles (64 kilometers) on a single charge, depending on factors such as riding conditions and assist levels.
• Display: The Das-Kit C7 backlit monochrome LCD display provides essential ride metrics including power output, battery level, speed, assist level, odometer, trip distance, trip time, and battery voltage.
• Drive Modes: Features cadence sensing pedal assist, trigger throttle for instant acceleration, and a walk mode for maneuvering the bike manually.
• Top Speed: Capable of reaching speeds up to 25 mph with pedal assist and 20 mph with throttle.
• Lights: Includes an integrated front light for enhanced visibility and a battery-operated rear light (powered by 2 AAA batteries) for safety in low-light conditions.

Bicycle Details

• Frame: Constructed from durable aluminum alloy, the Magnum Pathfinder features a high-step frame design with a size of 17 inches (43 cm), suitable for a wide range of riders.
• Fork: Equipped with a Suntour XCT-ATB 26" suspension fork to absorb shocks and vibrations, enhancing ride comfort.
• Gearing: Utilizes a reliable Shimano 8-speed gear system combined with Shimano shifters for smooth and efficient gear changes.
• Crank: Features a Prowheel crankset with 48T chainring and 165mm crank arm length for optimal pedaling efficiency.
• Brakes: Ensures reliable stopping power with Tektro hydraulic disc brakes, providing precise braking control in various weather conditions.
• Grips and Saddle: Offers ergonomic Selle Royal grips and a comfortable Selle Royal Freeway saddle for extended riding comfort.
• Tires and Wheels: Rolls on CST 26 x 2.35 tires mounted on 26-inch wheels, providing stability and traction on different surfaces.
• Fenders: Includes front and rear fenders to protect against splashes and debris, enhancing rider comfort.
• Chain: Uses a durable KMC chain for smooth and reliable power transmission.
• Measurements: The bike's dimensions include a seat tube length of 17 inches (43 cm), a reach of 16.5 inches (42 cm), and a standover height of 30 inches (80 cm), suitable for riders with a minimum height of 5’5” (165 cm).
• Weight: Weighs 59 lbs (26.75 kg) in total, with the battery contributing 7.5 lbs (3.4 kg) to the overall weight.
