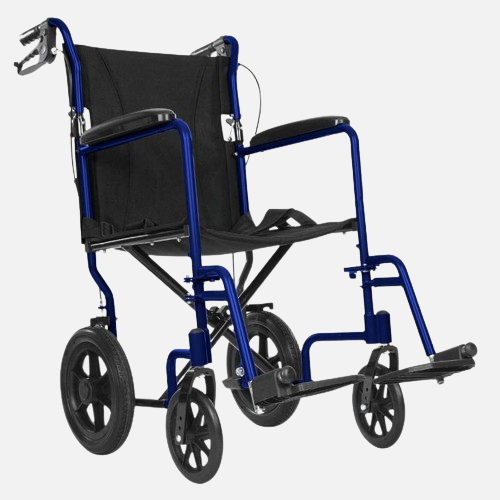

Vive transport wheelchair

Features

• Comfortable Seating: Safely transport an adult patient or loved one with a secure, folding transport wheelchair featuring a generously wide seat, padded backrest, and armrests.
• Compact Folding Design: Folds flat for storage with a backrest that folds down to fit in most vehicles for easy portability.
• Durable and Lightweight: Strong, lightweight steel frame with adjustable footrests supports up to 300 pounds.
• Safety Features: Locking hand brakes ensure the chair remains steady when entering or exiting, while an adjustable seatbelt secures passengers in motion.
• Large Rear Wheels: 12” rear wheels provide added stability and enable safe, easy maneuvering over uneven surfaces.
• Preassembled: Arrives pre-assembled with tool-free installation of the footrests.

Specifications

Uses:

• Mobility aid for transporting another individual.
• Not suitable for self-transportation.

Dimensions:

• Base when open: 21” by 32”
• Handle Height: 40”
• Front Wheels: 8”
• Back Wheels: 12”
• Folded: 8.25” by 30”
• Seat Width: 19”
• Seat Depth: 16"
• Width Between Handles: 17"

How To Assemble:

1. Unfold: Slowly pull the armrests apart until the seat is fully extended.
2. Raise Hand Grips: Pull upward until the backrest is fully extended and bars snap into place.
3. Attach Footrests: Position footrests on placement tabs, swing footrests towards center to engage locking lever.

How To Adjust The Footrest Height:

1. Remove Footrest: Release locking lever and swing footrest outward.
2. Loosen Bolt: Using a 14mm wrench, adjust the bolt on the underside of the footrest.
3. Adjust Footplate: Raise or lower to desired position, ensuring a minimum of 2” clearance from the floor.
4. Tighten Bolt: Reinstall footrest.

How To Fold the Transport Wheelchair:

1. Release Handles: Push two black tabs on the back of the frame downward.
2. Lower Hand Grips: Tuck neatly against the seat.
3. Fold Armrests: Pull armrests together until the seat is completely folded.

Care Instructions:

• Weekly Cleaning: Wipe down the frame with a dry, soft cloth.
• Thorough Cleaning: Use an automotive wax or similar product.
• Moisture Exposure: Dry immediately.
• Abrasive Cleaners: Do not use.

Guarantee Policy:

• Frame: 1 year
• Handles: 90 days
• Wheels: None / on arrival 30 days
• Screws / Bolts / Nuts: None / on arrival 30 days
• Cushions / Seats: None / on arrival 30 days
• Paint / Panels: None / on arrival 30 days
